Building an Automated Nmap Recon Tool in Kali Linux Using Bash

Introduction

Manual reconnaissance becomes repetitive very quickly during internal labs, CTFs, and authorized security assessments.

Instead of repeatedly running:

• Full port scans

• Service detection

• NSE scripts

• Output collection

I built a small Bash-based automation tool that:

• Scans all TCP ports

• Performs service/version detection

• Runs NSE scripts

• Generates a structured text report

The goal was not to replace professional vulnerability scanners, but to streamline the reconnaissance workflow using Nmap.

Understanding the Recon Workflow

A common beginner mistake is running:

nmap -A <target>

While convenient, it mixes multiple scan types together:

• OS detection
  Version detection
  NSE scripts
  Traceroute


This reduces control over the scanning process.

Instead, I separated the workflow into stages:

1.
   Full TCP Port Scan
   Extract Open Ports
   Service Detection
   NSE Script Scanning
   Report Generation


This makes the process cleaner, faster, and easier to automate.

Stage 1 — Full TCP Port Scan

The first step performs a complete scan across all 65,535 TCP ports.

nmap -Pn -n -T4 -p- --open <target>

Important Flags

• -Pn — Skip host discovery
  -n — Disable DNS resolution
  -p- — Scan all TCP ports
  -T4 — Faster timing template
  --open — Show only open ports


Stage 2 — Service and Version Detection

Once open ports are identified, the tool extracts them automatically and launches targeted service detection.

Example:

nmap -Pn -n -sV -O -p 22,80,443 <target>

This helps identify:

•
  Running services
  Software versions
  Operating system fingerprints


Stage 3 — NSE Script Scanning

The tool then performs NSE enumeration using:

nmap -Pn -n -sC -sV -p <ports> <target>

This enables additional enumeration such as:

•
  HTTP titles
  SMB discovery
  SSH fingerprints
  FTP anonymous access checks


One important lesson:

Running every NSE vulnerability script blindly creates unnecessary noise and slows scans significantly.

Targeted enumeration is more efficient.

Running the Script

After saving the script and giving it execution permission:

chmod +x recon.sh
./recon.sh 192.168.1.40

The script performs:

1.
   A full TCP port scan
   Service/version detection
   NSE script scanning
   Report generation

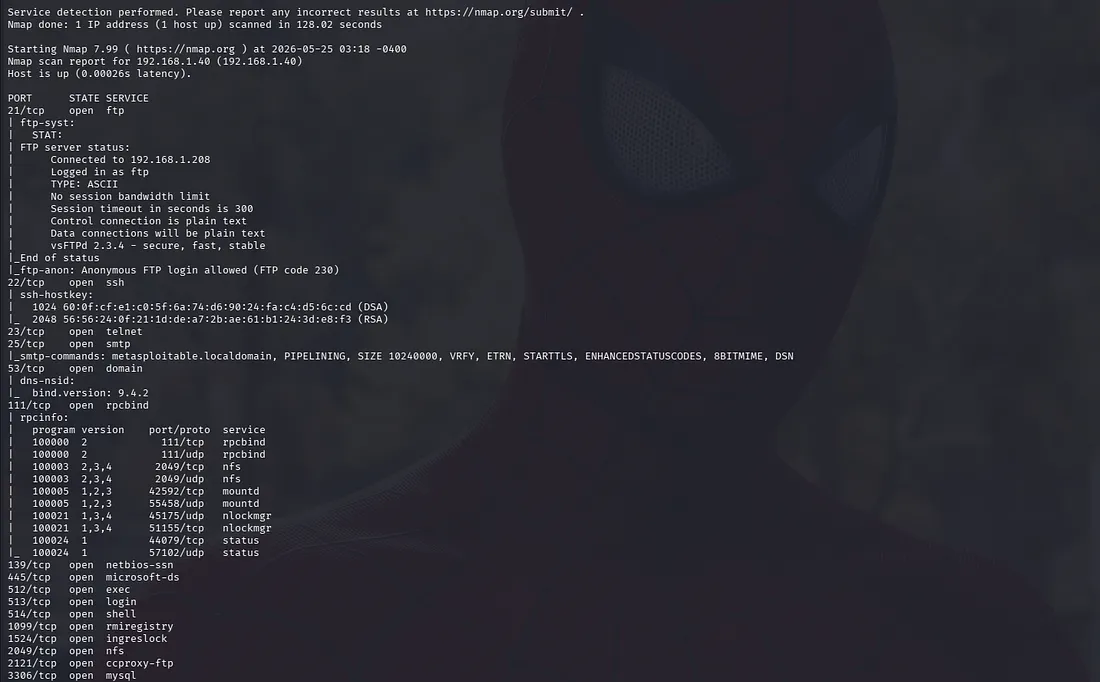

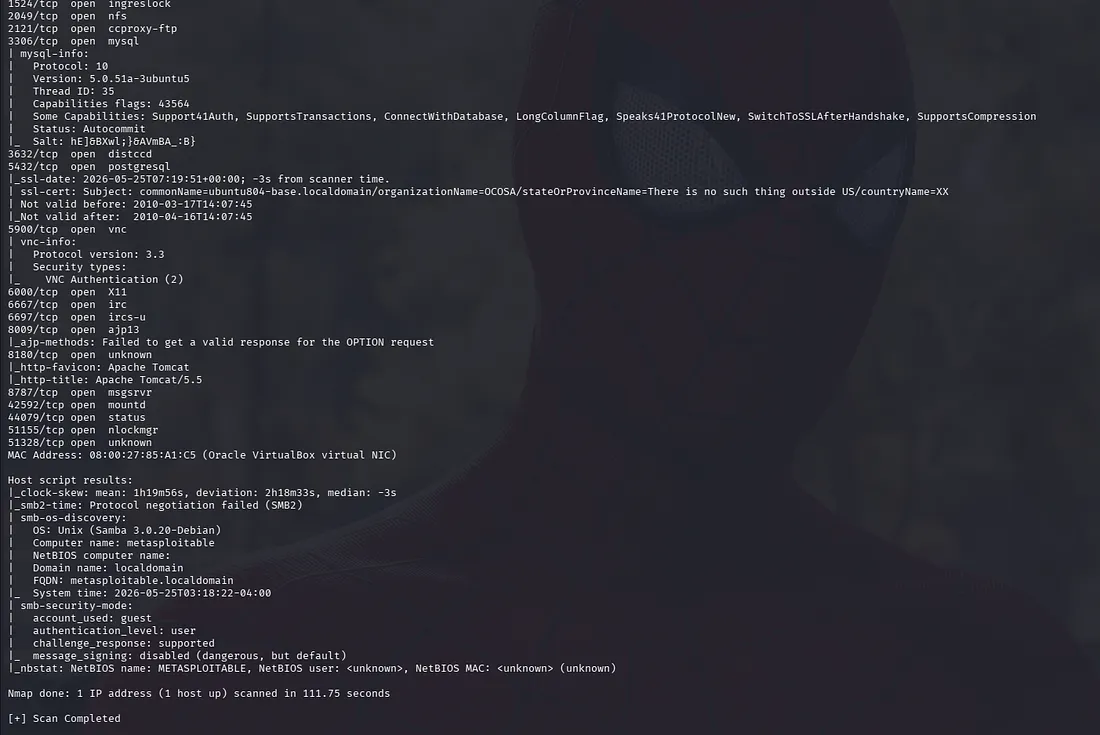

2. Example output:

Generating a Structured Text Report

Instead of relying only on terminal output, the script generates a structured text report containing:

•
  Target information
  Open ports
  Detected services
  NSE scan results
  Executed Nmap commands


All scan results are saved into a single report.txt file, making the output easier to read and review later.

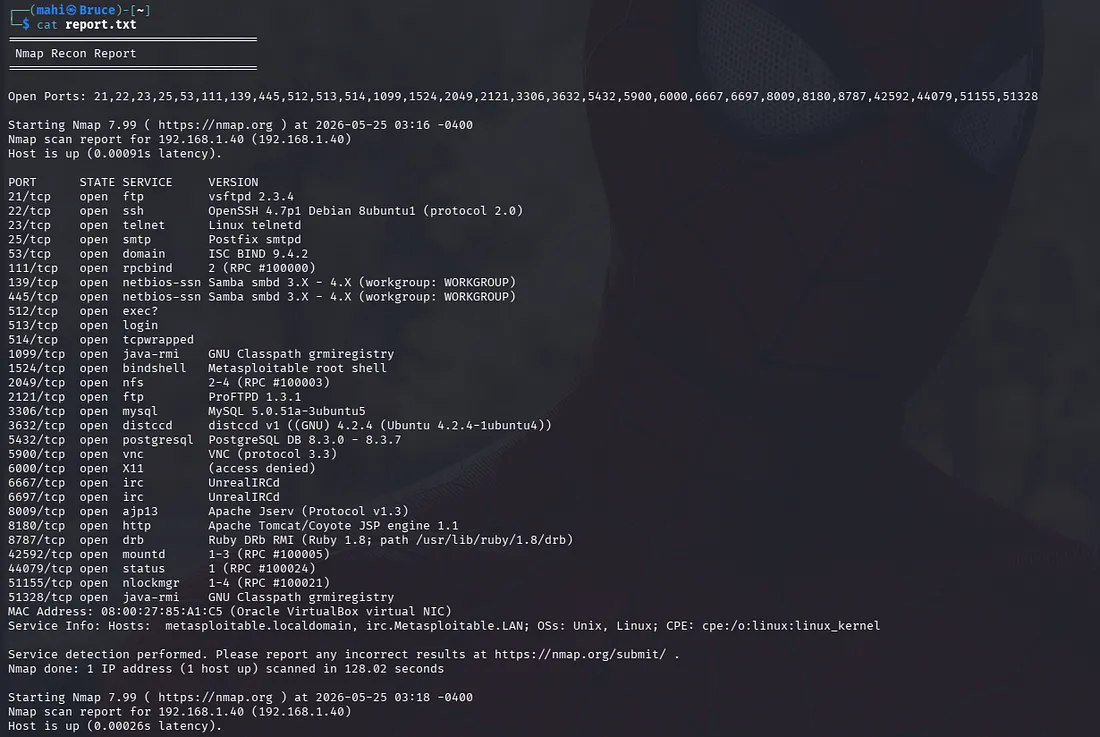

Example report structure:

Final Thoughts

This project is not a replacement for enterprise vulnerability scanners such as:

• Nessus
  OpenVAS

• Qualys


However, it is a useful exercise for understanding:

• Reconnaissance workflows
  Automation
  Bash scripting
  Nmap internals
  Structured reporting


Most importantly, it demonstrates the difference between:

Enumeration and Actual vulnerability validation

Reconnaissance identifies the attack surface.

Security testing validates real risk.

GitHub Repository

https://github.com/Mahidinesh0/recon
